AlexNet

ConvNet Image Classification

class lucid.models.AlexNet(num_classes: int = 1000)

The AlexNet module in lucid.nn implements the AlexNet architecture, a convolutional neural network designed for image classification tasks. It consists of multiple convolutional and fully connected layers with ReLU activations and dropout for regularization.

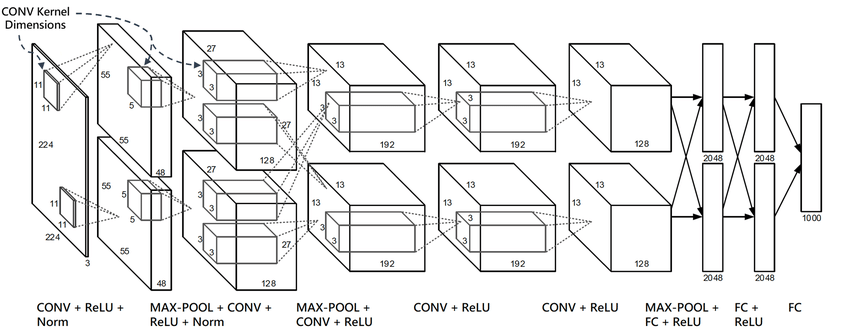

AlexNet architecture

Class Signature

class AlexNet(nn.Module):
    def __init__(self, num_classes: int = 1000)

Parameters

  • num_classes (int, optional): The number of output classes for classification. Default is 1000.

Attributes

  • features (nn.Sequential): The convolutional layers, including pooling and ReLU activations.

  • avgpool (nn.AdaptiveAvgPool2d): Adaptive average pooling layer that reduces the spatial dimensions to (6, 6).

  • classifier (nn.Sequential): The fully connected layers with dropout and ReLU activations for classification.

Architecture

The architecture of AlexNet is as follows:

  1. Convolutional Layers: - 5 convolutional layers with ReLU activations. - MaxPooling after the 1st, 2nd, and 5th convolutional layers.

  2. Fully Connected Layers: - 2 hidden fully connected layers, each with 4096 units and ReLU activations. - Output layer with num_classes units for classification.

  3. Regularization: - Dropout is applied to fully connected layers to reduce overfitting.

Examples

Basic Example

import lucid.nn as nn

# Create AlexNet with default 1000 classes
model = nn.AlexNet(num_classes=1000)

# Input tensor with shape (1, 3, 224, 224)
input_ = Tensor.randn(1, 3, 224, 224)

# Perform forward pass
output = model(input_)

print(output.shape)  # Shape: (1, 1000)

Explanation

The model processes the input through its convolutional and fully connected layers, producing logits for 1000 classes.

Custom Number of Classes

# Create AlexNet with custom 10 classes
model = nn.AlexNet(num_classes=10)

input_ = Tensor.randn(1, 3, 224, 224)

output = model(input_)
print(output.shape)  # Shape: (1, 10)
