ConvNeXt¶

ConvNet Image Classification

class lucid.models.ConvNeXt(num_classes: int = 1000, depths: list[int] = [3, 3, 9, 3], dims: list[int] = [96, 192, 384, 768], drop_path: float = 0.0, layer_scale_init: float = 1e-06)¶

The ConvNeXt module in lucid.nn implements the ConvNeXt architecture, a modernized version of convolutional neural networks inspired by transformer architectures. It features hierarchical design, depthwise convolutions, and improved training techniques, optimized for image classification tasks.

Class Signature¶

class ConvNeXt(nn.Module):
    def __init__(
        num_classes: int = 1000,
        depths: list[int] = [3, 3, 9, 3],
        dims: list[int] = [96, 192, 384, 768],
        drop_path: float = 0.0,
        layer_scale_init: float = 1e-6
    )

Parameters¶

num_classes (int, optional): The number of output classes for classification. Default is 1000.
depths (list[int], optional): The number of layers in each stage of the network. Default is [3, 3, 9, 3].
dims (list[int], optional): The number of channels in each stage of the network. Default is [96, 192, 384, 768].
drop_path (float, optional): The stochastic depth drop path rate. Default is 0.0.
layer_scale_init (float, optional): The initial value for layer scale. Default is 1e-6.

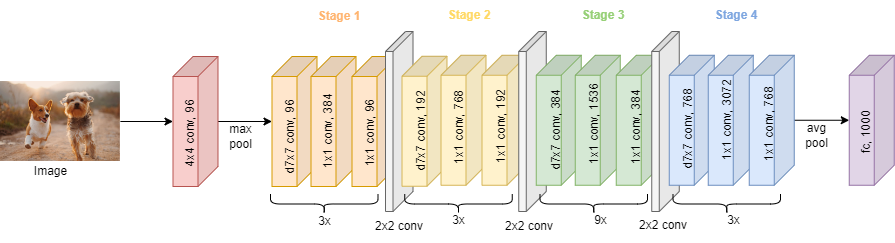

Architecture¶

The architecture of ConvNeXt is as follows:

Hierarchical Stages: - 4 stages with varying depths and dimensions, defined by the depths and dims parameters. - Each stage includes depthwise convolutions, normalization, and activation layers.
Normalization: - Layer normalization applied across the stages.
Drop Path: - Stochastic depth used for regularization, controlled by drop_path.
Classification Head: - A fully connected head for final classification, with num_classes outputs.

Examples¶

Basic Example

import lucid.models as models

# Create ConvNeXt with default 1000 classes
model = models.ConvNeXt(num_classes=1000)

# Input tensor with shape (1, 3, 224, 224)
input_ = lucid.random.randn(1, 3, 224, 224)

# Perform forward pass
output = model(input_)

print(output.shape)  # Shape: (1, 1000)

Explanation

The model processes the input through hierarchical convolutional stages and outputs logits for 1000 classes.

Custom Configuration

# Create ConvNeXt with custom number of classes and configuration
model = models.ConvNeXt(
    num_classes=10,
    depths=[2, 2, 6, 2],
    dims=[64, 128, 256, 512],
    drop_path=0.1,
    layer_scale_init=1e-5
)

input_ = lucid.random.randn(1, 3, 224, 224)

output = model(input_)
print(output.shape)  # Shape: (1, 10)
