SENet

ConvNet Image Classification

class lucid.models.SENet(block: Module, layers: list[int], num_classes: int = 1000, reduction: int = 16, block_args: dict = {})

The SENet class serves as a foundational implementation for creating Squeeze-and-Excitation Network architectures.

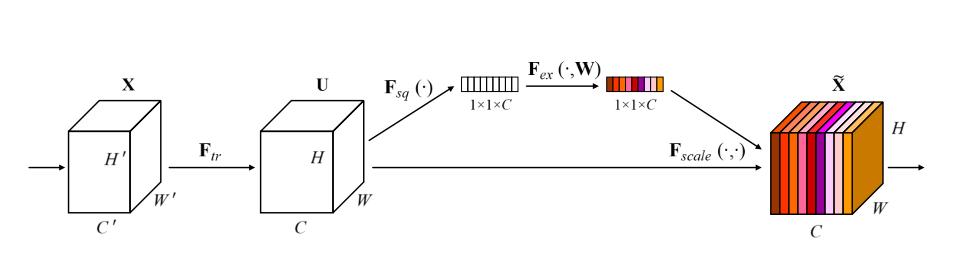

SENet architecture

Class Signature

class SENet(
    block: Type[nn.Module], layers: List[int], num_classes: int = 1000, reduction: int = 16
):

Parameters

  • block (Type[nn.Module]): The block type to use, incorporating the squeeze-and-excitation mechanism.

  • layers (List[int]): A list of integers specifying the number of blocks at each stage of the SENet.

  • num_classes (int, optional): Number of output classes for the final fully connected layer. Default is 1000.

  • reduction (int, optional): Reduction ratio for the squeeze-and-excitation mechanism. Default is 16.

Attributes

  • conv (Sequential): Initial convolutional block including a convolutional layer, batch normalization, ReLU activation, and max pooling.

  • stage1, stage2, stage3, stage4 (Sequential): Stages of the SENet, each containing multiple blocks as specified in the layers parameter, with squeeze-and-excitation operations.

  • avgpool (AdaptiveAvgPool2d): Global average pooling layer before the fully connected layer.

  • fc (Linear): Fully connected layer for classification.

Forward Calculation

The forward method defines the computation flow:

def forward(self, x: Tensor) -> Tensor:
    x = self.conv(x)

    x = self.stage1(x)
    x = self.stage2(x)
    x = self.stage3(x)
    x = self.stage4(x)

    x = self.avgpool(x)
    x = x.reshape(x.shape[0], -1)
    x = self.fc(x)

    return x
