PVT_V2¶

Transformer Vision Transformer Image Classification

class lucid.models.PVT_V2(img_size: int = 224, patch_size: int = 7, in_channels: int = 3, num_classes: int = 1000, embed_dims: list[int] = [64, 128, 256, 512], num_heads: list[int] = [1, 2, 4, 8], mlp_ratios: list[int] = [4, 4, 4, 4], qkv_bias: bool = False, qk_scale: float | None = None, drop_rate: float = 0.0, attn_drop_rate: float = 0.0, drop_path_rate: float = 0.0, norm_layer: type[~lucid.nn.module.Module] = <class 'lucid.nn.modules.norm.LayerNorm'>, depths: list[int] = [3, 4, 6, 3], sr_ratios: list[int] = [8, 4, 2, 1], num_stages: int = 4, linear: bool = False)¶

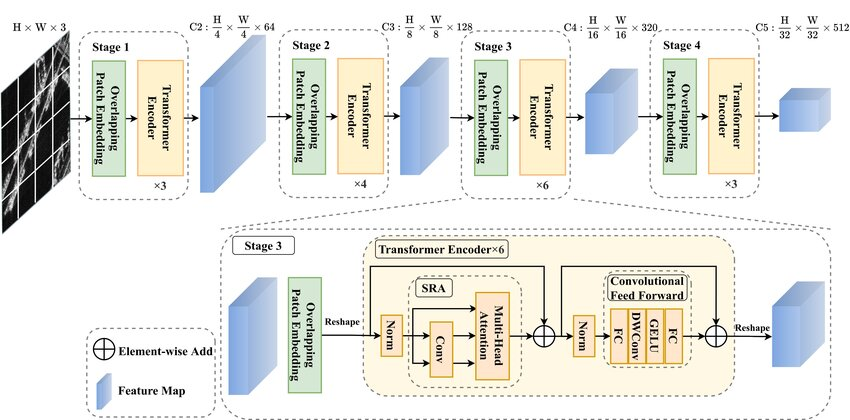

The PVT_V2 class implements the second version of the Pyramid Vision Transformer (PVT-v2), a hierarchical transformer architecture enhanced for both computational efficiency and representational power compared to its predecessor, PVT.

Key Enhancements¶

Linear Attention (Optional): PVT-v2 introduces the option to use linear attention mechanisms, which reduce complexity from quadratic to linear in spatial dimensions, enabling faster inference on high-resolution inputs.
Deeper Spatial Reduction Control: The sr_ratios are retained from PVT but allow finer control per stage in PVT-v2, improving feature extraction and efficiency during multi-stage attention.

Function Signature¶

class PVT_V2(nn.Module):
    def __init__(
        self,
        img_size: int = 224,
        patch_size: int = 7,
        in_channels: int = 3,
        num_classes: int = 1000,
        embed_dims: list[int] = [64, 128, 256, 512],
        num_heads: list[int] = [1, 2, 4, 8],
        mlp_ratios: list[int] = [4, 4, 4, 4],
        qkv_bias: bool = False,
        qk_scale: float | None = None,
        drop_rate: float = 0.0,
        attn_drop_rate: float = 0.0,
        drop_path_rate: float = 0.0,
        norm_layer: type[nn.Module] = nn.LayerNorm,
        depths: list[int] = [3, 4, 6, 3],
        sr_ratios: list[int] = [8, 4, 2, 1],
        num_stages: int = 4,
        linear: bool = False,
    ) -> None

Parameters¶

img_size (int, optional): The input image size. Default is 224.
patch_size (int, optional): The patch size for tokenization. Default is 7.
in_channels (int, optional): Number of channels in input image. Default is 3.
num_classes (int, optional): Number of classes for classification. Default is 1000.
embed_dims (list[int], optional): Embedding dimensions for each transformer stage. Default is [64, 128, 256, 512].
num_heads (list[int], optional): Number of attention heads in each stage. Default is [1, 2, 4, 8].
mlp_ratios (list[int], optional): MLP expansion ratios per stage. Default is [4, 4, 4, 4].
qkv_bias (bool, optional): Whether to use bias in q/k/v projections. Default is False.
qk_scale (float | None, optional): Optional scaling for query-key dot product. Default is None.
drop_rate (float, optional): Dropout rate for MLP outputs. Default is 0.0.
attn_drop_rate (float, optional): Dropout rate for attention weights. Default is 0.0.
drop_path_rate (float, optional): Dropout rate for residual paths. Default is 0.0.
norm_layer (type[nn.Module], optional): Normalization layer to use. Default is nn.LayerNorm.
depths (list[int], optional): Depth (number of blocks) at each stage. Default is [3, 4, 6, 3].
sr_ratios (list[int], optional): Spatial reduction ratios per stage. Default is [8, 4, 2, 1].
num_stages (int, optional): Number of transformer stages. Default is 4.
linear (bool, optional): Whether to use linear attention. Default is False.

Returns¶

PVT_V2: An instance of the PVT_V2 model for image tasks.
