CrossViT¶

Transformer Vision Transformer Image Classification

class lucid.models.CrossViT(img_size: int | list[int] = [224, 224], patch_size: list[int] = [12, 16], in_channels: int = 3, num_classes: int = 1000, embed_dim: list[int] = [192, 384], depth: list[list[int]] = [[1, 3, 1], [1, 3, 1], [1, 3, 1]], num_heads: list[int] = [6, 12], mlp_ratio: list[float] = [2.0, 2.0, 4.0], qkv_bias: bool = False, qk_scale: float | None = None, drop_rate: float = 0.0, attn_drop_rate: float = 0.0, drop_path_rate: float = 0.0, norm_layer: type[~lucid.nn.module.Module] = <class 'lucid.nn.modules.norm.LayerNorm'>, multi_conv: bool = False)¶

The CrossViT module implements the Cross-Attention Vision Transformer architecture, which combines multiple vision transformer branches with cross-attention mechanisms to effectively process multi-scale visual information.

Class Signature¶

class CrossViT(nn.Module):
    def __init__(
        self,
        img_size: int | list[int] = [224, 224],
        patch_size: list[int] = [12, 16],
        in_channels: int = 3,
        num_classes: int = 1000,
        embed_dim: list[int] = [192, 384],
        depth: list[list[int]] = [[1, 3, 1], [1, 3, 1], [1, 3, 1]],
        num_heads: list[int] = [6, 12],
        mlp_ratio: list[float] = [2.0, 2.0, 4.0],
        qkv_bias: bool = False,
        qk_scale: float | None = None,
        drop_rate: float = 0.0,
        attn_drop_rate: float = 0.0,
        drop_path_rate: float = 0.0,
        norm_layer: type[nn.Module] = nn.LayerNorm,
        multi_conv: bool = False,
    )

Parameters¶

img_size (int | list[int], optional): Size of input image. Default is [224, 224].
patch_size (list[int], optional): Size of patch for each branch. Default is [12, 16].
in_channels (int, optional): Number of input image channels. Default is 3.
num_classes (int, optional): Number of classes for classification head. Default is 1000.
embed_dim (list[int], optional): Embedding dimension for each branch. Default is [192, 384].
depth (list[list[int]], optional): Depth of each stage for self-attention and cross-attention. Default is [[1, 3, 1], [1, 3, 1], [1, 3, 1]].
num_heads (list[int], optional): Number of attention heads for each branch. Default is [6, 12].
mlp_ratio (list[float], optional): Ratio of MLP hidden dim to embedding dim for each stage. Default is [2.0, 2.0, 4.0].
qkv_bias (bool, optional): If True, add a learnable bias to query, key, value projections. Default is False.
qk_scale (float | None, optional): Override default qk scale of head_dim ** -0.5 if set. Default is None.
drop_rate (float, optional): Dropout rate for embedding dropout. Default is 0.0.
attn_drop_rate (float, optional): Dropout rate for attention dropout. Default is 0.0.
drop_path_rate (float, optional): Stochastic depth rate. Default is 0.0.
norm_layer (type[nn.Module], optional): Normalization layer. Default is nn.LayerNorm.
multi_conv (bool, optional): Whether to use multiple convolutional layers for patch embedding. Default is False.

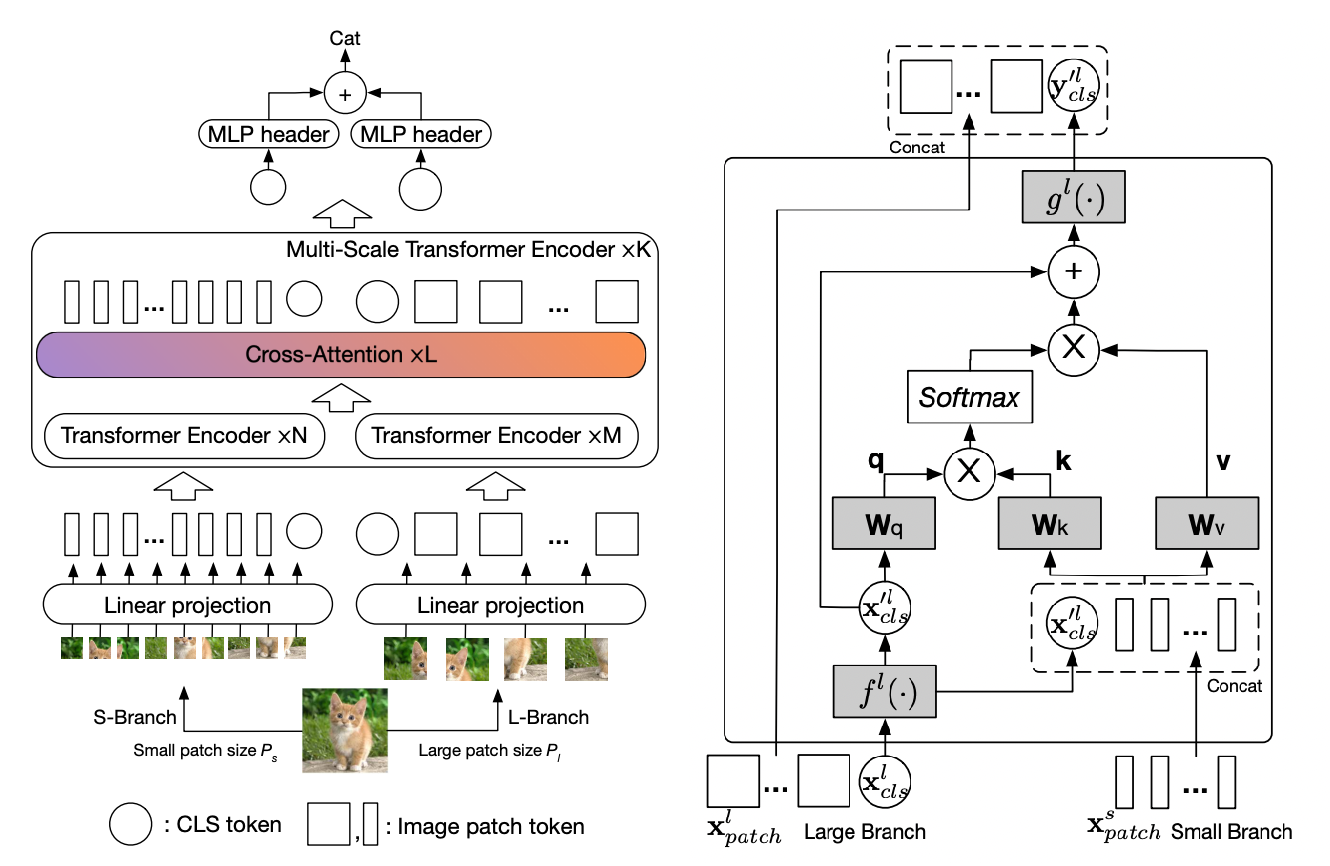

Architecture¶

The CrossViT architecture consists of:

Multi-scale Patch Embedding: - Different patch sizes (e.g., 12×12 and 16×16) to capture multi-scale features. - Each patch embedding branch forms a separate transformer processing path.
Transformer Encoders: - Self-attention transformers process each scale’s embeddings independently. - Cross-attention exchanges information between different scales. - Multiple stages integrate self and cross-attention operations.
Fusion Mechanism: - Cross-attention modules aggregate information from different scales. - Weighted fusion combines outputs from multiple branches for final prediction.
Classification Head: - Final token classification through shared MLP layers.

Mathematical Representation¶

The core cross-attention operation can be represented as:

\[\text{Attention}(Q, K, V) = \text{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V\]

Where for cross-attention between scales:

\[Q_1 = W_Q^1 \cdot X_1, \quad K_2 = W_K^2 \cdot X_2, \quad V_2 = W_V^2 \cdot X_2\]

\[\text{CrossAttention}(X_1, X_2) = \text{softmax}\left(\frac{Q_1 K_2^T}{\sqrt{d_k}}\right)V_2\]

Examples¶

Basic Usage

import lucid
from lucid.models.transformer import CrossViT

# Create a default CrossViT model
model = CrossViT()

# Forward pass
input_tensor = lucid.randn(1, 3, 224, 224)
output = model(input_tensor)

print(output.shape)  # Shape: (1, 1000)

Custom Configuration

# Create CrossViT with custom configuration
model = CrossViT(
    img_size=[384, 384],
    patch_size=[16, 32],
    embed_dim=[256, 512],
    depth=[[1, 4, 1], [1, 4, 1], [1, 4, 1]],
    num_heads=[8, 16],
    num_classes=100
)

input_tensor = lucid.randn(1, 3, 384, 384)
output = model(input_tensor)
print(output.shape)  # Shape: (1, 100)

Note

The number of branches in CrossViT is determined by the length of the patch_size and embed_dim lists.

Tip

Using different patch sizes allows the model to capture both fine-grained details (smaller patches) and global semantic information (larger patches) simultaneously.

Warning

The length of patch_size and embed_dim must match, as they define the parallel branches of the model.

Implementation Details¶

The CrossViT implementation follows the approach described in the paper “CrossViT: Cross-Attention Multi-Scale Vision Transformer for Image Classification” by Chen et al. It extends traditional Vision Transformers by:

Employing multiple transformer branches with different patch sizes to capture multi-scale features.
Using cross-attention to exchange information between branches.
Maintaining computational efficiency through careful attention design.

The module is organized as:

Patch Embedding: Converts image patches into embeddings for each branch.
Transformer Encoder Stages: Processes embeddings through self and cross-attention.
Classification Head: Aggregates information for final prediction.

This approach has shown to be effective for image classification tasks, particularly when recognizing objects at different scales is important.
