CoAtNet¶

ConvNet Image Classification

class lucid.models.CoAtNet(img_size: tuple[int, int], in_channels: int, num_blocks: list[int], channels: list[int], num_classes: int = 1000, num_heads: int = 32, block_types: list[str] = ['C', 'C', 'T', 'T'], _scaled_num_blocks: list[int] | None = None, _scaled_channels: list[int] | None = None)¶

The CoAtNet module in lucid.nn implements the CoAtNet architecture, a hybrid model combining convolutional and attention-based mechanisms. It leverages the strengths of both convolutional neural networks (CNNs) and vision transformers (ViTs), making it highly efficient for image classification tasks.

CoAtNet utilizes depthwise convolutions, relative position encoding, and pre-normalization to enhance training stability and performance.

Class Signature¶

class CoAtNet(nn.Module):
    def __init__(
        img_size: tuple[int, int],
        in_channels: int,
        num_blocks: list[int],
        channels: list[int],
        num_classes: int = 1000,
        num_heads: int = 32,
        block_types: list[str] = ["C", "C", "T", "T"],
    )

Parameters¶

img_size (tuple[int, int]): The spatial resolution of the input image (height, width).
in_channels (int): The number of input channels, typically 3 for RGB images.
num_blocks (list[int]): Number of blocks in each stage, defining the depth of each phase.
channels (list[int]): Number of channels in each stage of the network, controlling the model width.
num_classes (int, optional): The number of output classes for classification. Default is 1000.
num_heads (int, optional): Number of attention heads in the transformer-based blocks. Default is 32.
block_types (list[str], optional): Defines whether each stage uses convolution (C) or transformer (T) blocks. Default is [“C”, “C”, “T”, “T”].

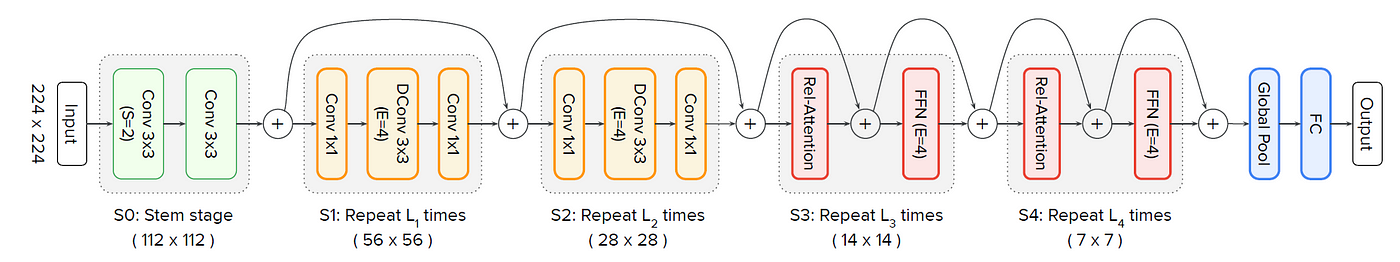

Hybrid Architecture¶

The CoAtNet model employs a hybrid structure that fuses convolutional and transformer blocks for enhanced representation learning:

Early Convolutional Blocks:
- The initial stages use convolution-based feature extraction (C blocks).
- These layers focus on capturing local patterns efficiently.
- Convolutions perform feature extraction using:

  \[Y = W * X + b\]
Transformer-Based Blocks:
- Later stages transition into transformer blocks (T blocks).
- These layers incorporate self-attention to capture long-range dependencies.
- Self-attention is computed as:

  \[\mathbf{A} = \text{softmax} \left( \frac{QK^T}{\sqrt{d_k}} \right)V\]
Pre-Normalization:
- Each transformer block applies Layer Normalization before the attention mechanism.
- Helps improve gradient flow and stability during training.
- The normalization step follows:

  \[\hat{x} = \frac{x - \mu}{\sigma + \epsilon}\]
Relative Position Encoding:
- Unlike absolute position encoding in traditional ViTs, CoAtNet leverages relative position encoding.
- The attention mechanism incorporates positional information dynamically:

  \[A_{ij} = \frac{Q_i K_j^T}{\sqrt{d_k}} + B_{ij}\]
- The relative position bias matrix ( B_{ij} ) is learnable and helps in modeling spatial relationships.
Depthwise Convolutions:
- Used to reduce computational complexity while maintaining strong feature extraction capabilities.
- Reduces the number of parameters compared to traditional convolutional layers.
- The depthwise convolution operation is:

  \[Y_{i,j} = \sum_{k} X_{i+k, j+k} W_k\]
Scaling Strategy:
- CoAtNet scales efficiently across depth (D), width (W), and resolution (R), making it highly versatile for various image sizes and computational constraints.

Examples¶

Basic Example

import lucid.models as models

# Create CoAtNet with default settings
model = models.CoAtNet(
    img_size=(224, 224),
    in_channels=3,
    num_blocks=[2, 2, 6, 2],
    channels=[64, 128, 256, 512],
    num_classes=1000,
    num_heads=32,
    block_types=["C", "C", "T", "T"]
)

# Input tensor with shape (1, 3, 224, 224)
input_ = lucid.random.randn(1, 3, 224, 224)

# Perform forward pass
output = model(input_)
print(output.shape)  # Shape: (1, 1000)
