EfficientDet¶
ConvNet One-Stage Detector Object Detection
- class lucid.models.EfficientDet(compound_coef: Literal[0, 1, 2, 3, 4, 5, 6, 7] = 0, num_anchors: int = 9, num_classes: int = 80)¶

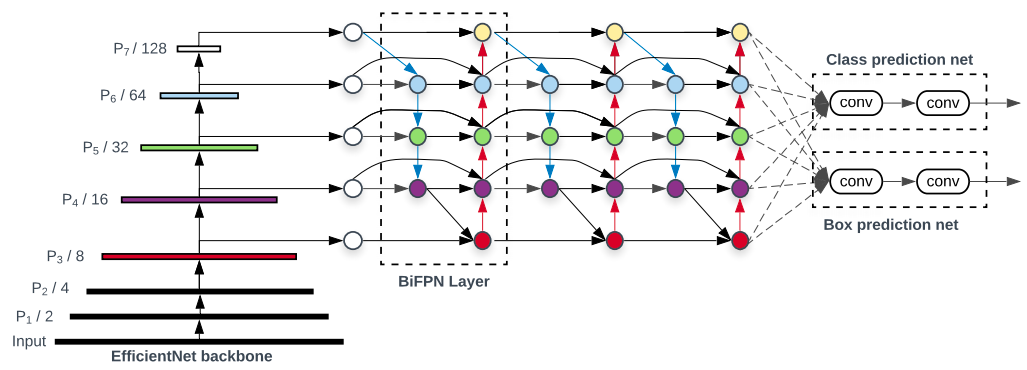

The EfficientDet class implements a family of Efficient Object Detection models, based on the architecture proposed by Tan et al. (2020).
It combines EfficientNet backbones with BiFPN (Bidirectional Feature Pyramid Networks) for scalable and efficient multi-scale detection.
Class Signature¶
class EfficientDet(
compound_coef: Literal[0, 1, 2, 3, 4, 5, 6, 7] = 0,
num_anchors: int = 9,
num_classes: int = 80,
)
Parameters¶
compound_coef (Literal[0-7]): Compound scaling coefficient controlling backbone depth, width, and input resolution.
num_anchors (int): Number of anchor boxes per feature level, typically 9.
num_classes (int): Number of target object classes.
Backbone Network¶
The backbone network of EfficientDet, a truncated EfficientNet model can be accessed via .backbone attribute of an instance of the class EfficientDet.
Warning
EfficientNet backbone for EfficientDet model is not pre-trained by default.
The user should pre-train the corresponding separate EfficientNet variant model for image classification task and then migrate the weights of stage 1-7 to EfficientDet.backbone.model.
Weight migration can be easily done with state_dict and load_state_dict methods.
pretrained = efficientnet_b0(...) # Pre-trained for Image Classification
model = EfficientDet(...)
# Migrate Weights Stage-by-Stage
for i in range(7):
# Save state-dict of individual pre-trained model stage
st_dict = getattr(pretrained, f"stage{i + 1}").state_dict()
# model.backbone.model is an nn.Sequential module with 7 stages
model.backbone.model[i].load_state_dict(st_dict)
Input Format¶
The model expects a 4D input tensor of shape:
(N, 3, H, W)
Where:
N is the batch size,
3 represents the RGB image channels,
H, W are the input height and width (variable depending on compound_coef).
Target Format¶
Targets should be provided as a list of Tensors, one per image:
targets = [Tensor_i of shape (Ni, 5)]
Where:
Ni is the number of objects in the i-th image,
each row of shape (5,) corresponds to [x_min, y_min, x_max, y_max, class_id].
Note
Bounding box coordinates are expected in absolute pixel units, not normalized.
Loss Computation¶
During training, the total loss combines classification and box regression terms:
Where:
\(\mathcal{L}_{cls}\) is the Focal Loss for classification,
\(\mathcal{L}_{box}\) is the Smooth L1 or IoU-based regression loss.
Focal Loss Explanation¶
The Focal Loss addresses the issue of class imbalance by down-weighting easy examples and focusing training on hard, misclassified samples.
It is defined as:
Where:
\(p_t\) is the predicted probability for the true class:
\[\begin{split}p_t = \begin{cases} p, & \text{if } y = 1 \\ 1 - p, & \text{otherwise} \end{cases}\end{split}\]\(\alpha_t\) is a weighting factor balancing positive and negative samples,
\(\gamma\) (the focusing parameter) controls how much the easy examples are down-weighted.
The gradient of the Focal Loss with respect to the input probability \(p\) is:
As \(p_t \to 1\), the gradient approaches zero, reducing the contribution of well-classified examples and allowing the model to focus on harder ones.
Tip
Typical values: \(\alpha_t = 0.25\), \(\gamma = 2.0\).
For detection, Focal Loss is applied to every anchor across all pyramid levels.
Note
The Focal Loss was first introduced in Lin et al., 2017 (RetinaNet), and EfficientDet adopted it to stabilize classification across feature scales.
Methods¶
Tip
EfficientDet uses compound scaling to balance model accuracy and efficiency: larger compound_coef values correspond to deeper and wider networks (D0-D7).
Warning
The target list length must match the batch size, and each Tensor inside should contain [x_min, y_min, x_max, y_max, class_id] for all objects in that image.
